Engineered for versatility and efficiency

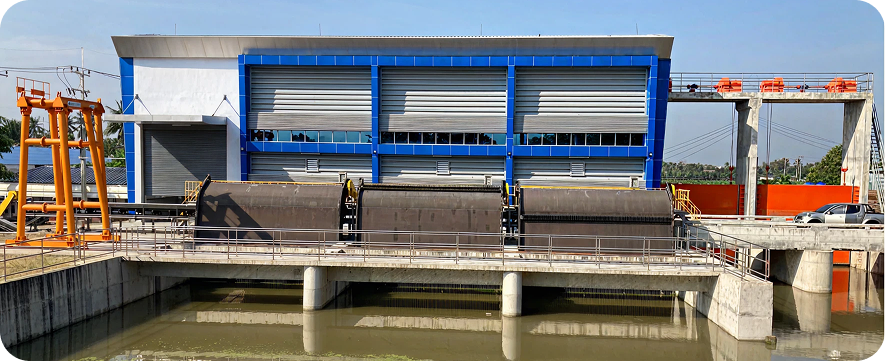

The Beveron pump from Bosman Watermanagement is a highly versatile solution, suitable for both new installations and the renovation of existing pumping stations. With 29 standard modules available, it covers a wide range of filtration speeds (3–30 m³/s) and heads (1–10 m), making it adaptable to diverse hydraulic requirements. Thanks to precisely matched components and an optimized flow design, the pump minimizes flow losses and maximizes hydraulic efficiency. The specially developed suction box reduces required submersion depth and minimizes vortex formation, improving reliability and overall energy performance.

Precision components for maximum performance

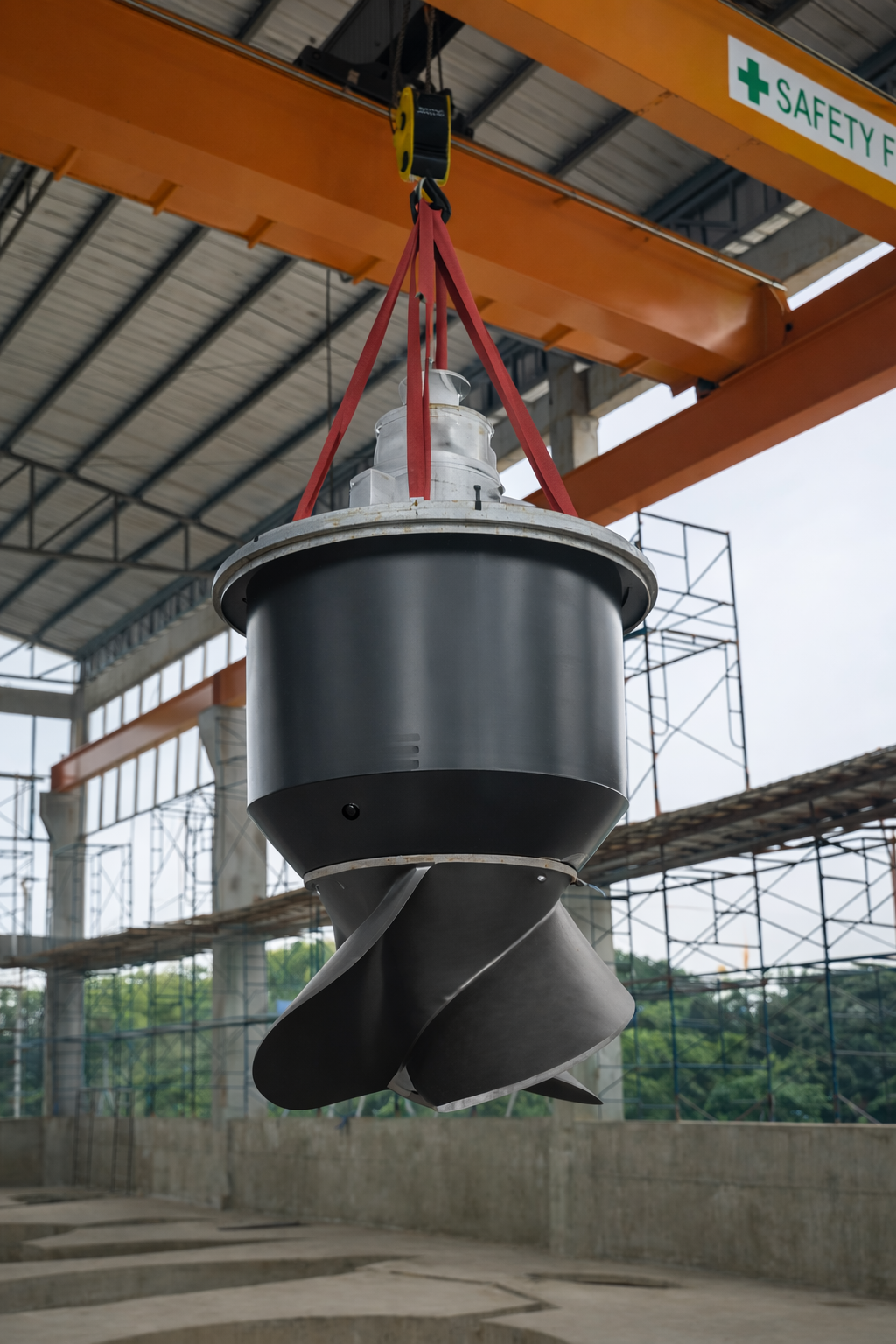

Designed for long-lasting performance and efficiency, the pump incorporates a robust, three‑bladed half‑open impeller cast from a single piece. The impeller material can be customized to meet specific strength and corrosion‑resistance demands. Its matching volute features a trapezoidal concrete design with a levelled floor to minimize energy losses. Extensive simulations and real‑world testing confirm the system’s reliability and high performance under even the most demanding conditions.

Features of the Beveron pump

• Low installation height
• Maintenance-free, water-lubricated ceramic bearing with unlimited service life, ande therefore no oil or grease discharge into surface water
• Very low noise level
• Corrosion- and erosion-resistant pump housing
• Pump impeller made of wear-resistant and stainless material
• Durable, leak-proof shaft seal on top of the pump
• Pump impeller easily accessible
• Relatively low lifting weight
